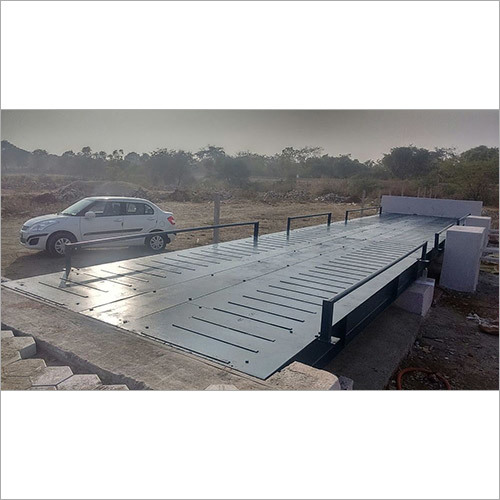

Modular Weighbridge

Modular Weighbridge
Modular Weighbridge
Product Code : VWS 01
Brand Name : VISHWA WEIGHING SYSTEM
Price And Quantity
  • Unit of Measure
  • Box/Boxes
Product Description

Features of Modular Weighbridge

LOAD DISTANCE IS REDUCED : The modular weighbridge provided by us is very simple to install, dismantle and re-install. The modules of weighbridge can be loaded into truck and transported to nearest area of use. This has helped in reduction in lead distance as well as cost of handling and labor.

EASY MAINTENANCE : This weighing equipment is designed in a way that it allows easy operations, even in harsh conditions. The users will never have to face any downtime due to break down of this equipment.

DIFFERENCE: In our modular design, there are fully welded modules, and we have avoided the problem that can arise due to loose nut and bolts. According to the site conditions, the length of the equipment can be increased or decreased. This allows the user of the equipment achieve consistency and accuracy in weighing.

WARPING OF PLATES : To avoid the situation of top deck plates bending or warping, we have fully welded it and given it a support by installing cross beams within every 1 meter span. The user of this equipment will not have to replace the top deck plates, thus it saves him time and money. The rugged structure also increases the service life of the equipment.

EASY TO MOVE : The mobility feature of this equipment has greatly reduced the inventory and capital cost.

BEST FOR ACCURACY : We understand the necessity of consistency in accuracy when it comes to weighing equipment, therefore, we have used advanced electronic and structural design. With this system, the users will not have to worry about the loss they can face with inaccurate measurements.

COMPARISON OF MODULAR WEIGHBRIDGE WITH THE NORMAL PITLESS TYPE WEIGHBRIDGES :

The weighbridges are designed to be easily installed, dismantled and re-installed at another site within short time span. Its modules can be easily loaded on a normal truck and transported.

Because of their modular type, these can be upgraded by just adding one or two modules for extending its platform's length. The extendability option is not given in conventional type of weighbridges.

As far as main longitudinal members are concerned, conventional type has two while modular type weighing equipment has four. The larger the number, the more stronger the structure.

Load cells are fitted in the weighbridge in a specific arrangement in order to support the structure. When a loaded truck moves over the platform, it creates a dynamic force. The swinging structure of the weighbridge avoid the shock load to directly transferred to load cells and thus maintain their accuracy for long haul.

The modules of weighbridge are welded, that means, no rain water goes under the chassis of weighbridge. This feature makes the  weighbridge resistant to rust and significantly reduces the maintenance cost.

In conventional weighbridges, the loose parts, such as girders, plates and transoms are held by fasteners. The effect of cyclic loading of truck weighing is the movement of the main girders. This effect in continuous and longer term usage will lead to wear and tear of the parts, that will eventually call for part replacement. While, in modular weighbridges, the modules are welded and have no loose parts. Therefore, these modules will not be effected by the cyclic loading and will need no part replacements.
Trade Information
  • FOB Port
  • Mundra
  • Payment Terms
  • Cheque, Letter of Credit at Sight (Sight L/C)
  • Sample Available
  • Yes
  • Main Export Market(s)
  • Asia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
